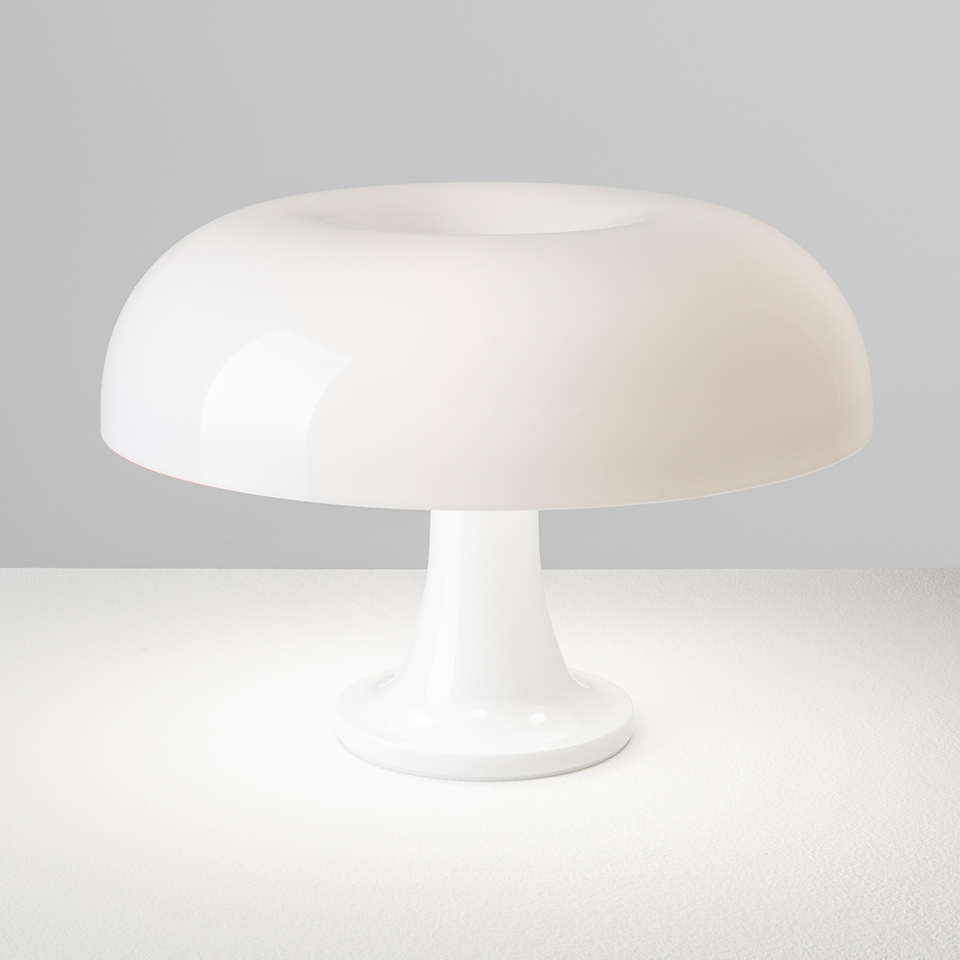

Nessino White

IP20
Nessino White - 1Nessino White - 2

Downloadable files

2D Model
  • Nessino.dwg
  • Nessino.dxf
3D Model
  • Nessino.3ds
  • Nessino.stp
Silhouette
  • Nessino.jpg
Instructions
  • Y513000593C F_IS NESSINO.pdf
IES Europe
  • 0039060A.IES
IES USA
  • 0039060A.IES
LDT File
  • 0039060A.LDT
LDT Image
  • 0039060A.PDF
FEATURES
  • Product Code: 0039060A
  • Colour: White
  • Installation: Table
  • Material: Technopolymer body and diffuser
  • Series: Design Collection
  • Environment: Indoor
  • Emission: Diffused And Direct
  • design by: Giancarlo Mattioli, Gruppo Architetti Urbanisti Città Nuova
LUMINAIRE *
  • Watt: 16W
  • Voltage: 220V-240V
  • Delivered lumen output: 1302lm
  • CCT: 3000K
  • Efficiency: 82%
  • Efficacy: 81.35lm/W
  • CRI: 80

Photometric data may vary depending on the source installed.
Light measurements are provided in relative form and technical lighting calculations may be updated according to the effective source used.

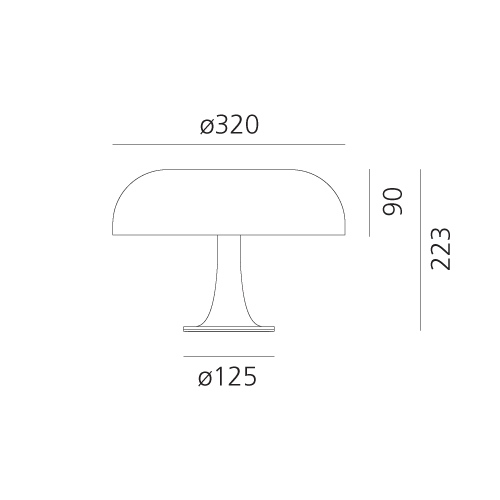

DIMENSIONS
  • Height: 223 mm
  • Diameter: 320 mm
  • Base Diameter: 125 mm
SOURCES NOT INCLUDED
  • Category: Led Retrofit
  • Number: 4
  • Watt: MAX 6W
  • Socket: E14
Download all Data sheet PDF
