Vector Pendant 40 - 21° 2700K - White - Push on Board

IP20 Dimmerable:
Artemide Funivia pendant lamp: white cylindrical fixture hanging from black cable attached to red overhead track system - 1

Downloadable files

2D Model
  • Funivia - Accessory 2D.zip
  • Funivia - Vector Pendant 40.dxf
3D Model
  • Funivia - Accessory 3D.zip
  • Funivia - Vector Pendant 40.zip
Silhouette
  • vector-40-pendant.jpg
Instructions
  • Y513001518E F_IS VECTOR 30 40 55 FUNIVIA-PENDANT FUNIVIA.pdf
  • Y513001520A FOGLIO ISTRUZ FUNIVIA.pdf
  • Y513001689A F_IS DIFFUSED LINEAR 600 1200 FUNIVIA-PENDANT FUNIVIA.pdf
IES Europe
  • FU40101+AP90200.IES
  • FU40101+AP90300.IES
  • FU40101+AP90400.IES
  • FU40101.IES
IES USA
  • FU40101+AP90200.IES
  • FU40101+AP90300.IES
  • FU40101+AP90400.IES
  • FU40101.IES
LDT File
  • FU40101+AP90200.LDT
  • FU40101+AP90300.LDT
  • FU40101+AP90400.LDT
  • FU40101.LDT
LDT PDF
  • FU40101+AP90200.PDF
  • FU40101+AP90300.PDF
  • FU40101+AP90400.PDF
  • FU40101.PDF
FEATURES
  • Product Code: FU40101
  • Colour: White
  • Installation: Suspension, Projector
  • Series: Architectural Indoor
  • design by: Carlotta de Bevilacqua
LUMINAIRE
  • Watt: 10W
  • Delivered lumen output: 543lm
  • CCT: 2700K
  • Efficiency: 69%
  • Efficacy: 54.25lm/W
  • CRI: 90
  • Dimmable Typology: Push

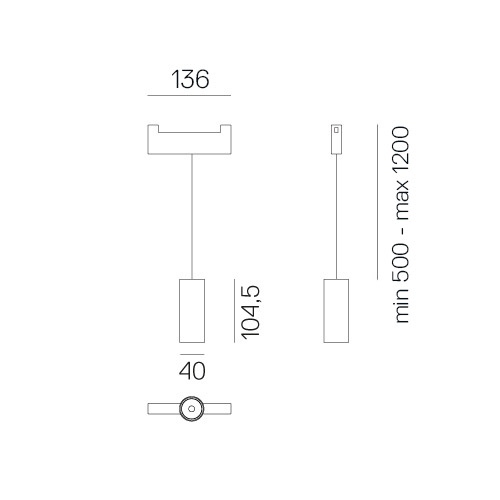

DIMENSIONS
  • Height: 104 mm
  • Diameter: 40 mm
  • Base Length: 136 mm
  • Max Height from ceiling: 1200 mm
Download all Data sheet PDF
