Gople System - Spot Pendant Track - 60 - 3000K - 28° - Dimmable DALI - Black

IP20 Dimmerable:
Artemide Gople System: black capsule-shaped pendant lamp suspended by a thin cable from a black ceiling track rail - 1

Downloadable files

2D Model
  • Gople System - Spot 60 Suspension.dxf
3D Model
  • Gople System - Spot 60 Suspension.3ds
  • Gople System - Spot 60 Suspension.stp
  • Gople System All Modules + Accessories.zip
  • Gople System Ceiling Configuration Example.zip
  • Gople System Suspension Configuration Example.zip
Silhouette
  • Gople-spot-60-pendant.jpg
Instructions
  • Y513001588C F_IS GOPLE TRACK X KIT ALIM RCS - REM_A3.pdf
  • Y513001589C F_IS GOPLE TRACK X KIT ALIM SMD_A3.pdf
  • Y513001590 F.I. GOPLE TRACK WITH AOL.pdf
  • Y513001591A F.I. GOPLE SPOT.pdf
IES Europe
  • CA21204+AP90200.IES
  • CA21204+AP90300.IES
  • CA21204+AP90400.IES
  • CA21204.IES
IES USA
  • CA21204+AP90200.IES
  • CA21204+AP90300.IES
  • CA21204+AP90400.IES
  • CA21204.IES
LDT File
  • CA21204+AP90200.LDT
  • CA21204+AP90300.LDT
  • CA21204+AP90400.LDT
  • CA21204.LDT
LDT PDF
  • CA21204+AP90200.PDF
  • CA21204+AP90300.PDF
  • CA21204+AP90400.PDF
  • CA21204.PDF
FEATURES
  • Product Code: CA21204
  • Colour: Black
  • Installation: Projector
  • Series: Architectural Indoor
  • design by: BIG - Bjarke Ingels Group
LUMINAIRE
  • Watt: 9W
  • Voltage: 48V
  • Delivered lumen output: 542lm
  • CCT: 3000K
  • Efficiency: 62%
  • Efficacy: 60.18lm/W
  • CRI: 90
  • Dimmable Typology: APP,Dali

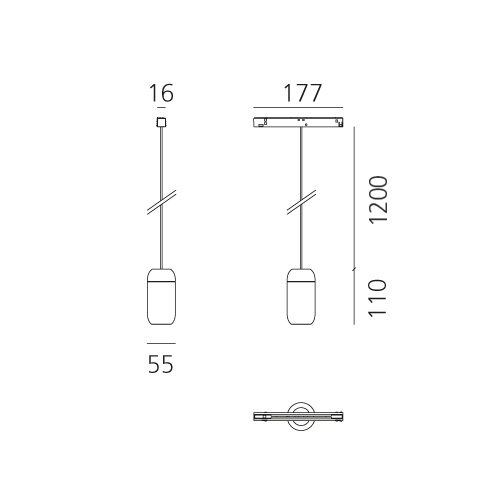

DIMENSIONS
  • Length: 177 mm
  • Width: 55 mm
  • Height: 110 mm
  • Max Height from ceiling: 1200 mm
Accessories
Anti-dazzle louvre
AP90400
Lens for elliptical emission
AP90200
Soft filter
AP90300
Download all Data sheet PDF
